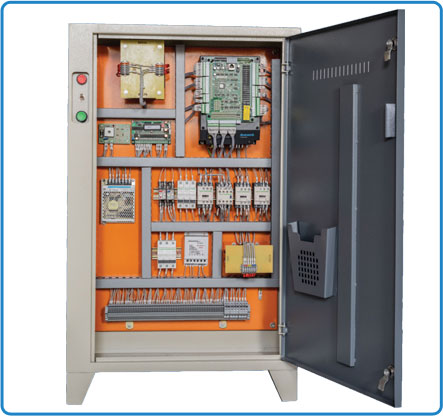

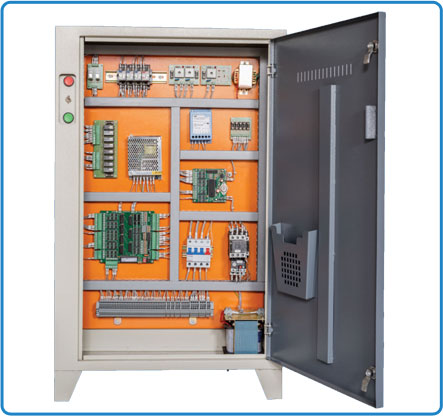

Controller with single phase ARD system

Features

• Easy to duplex group control.
• Suitable for all type of V3F drives.
• Supported for double door operation.
• Supported upto 16th floor in down collective system and 11th floor in fully collective system.
• Call register LED and call push button are on single wire.
• Safety and working system like integrated controller.
• Inbuilt single phase ARD (UPS 220V AC) supported.
• Door lock short protection.
• Password protection function is available to set elevator running time.
• Adjustable display pattern.
• Combination of micro controller and relay card makes panel easy and small.
• 4 digit display on board make easier to program parameter and view an error code.
• Autodoor operation with door limit switch and without door limit switch.
• Inbuilt 1 1 Ov safety system.
• Required voltage rated of ram and brake coil.

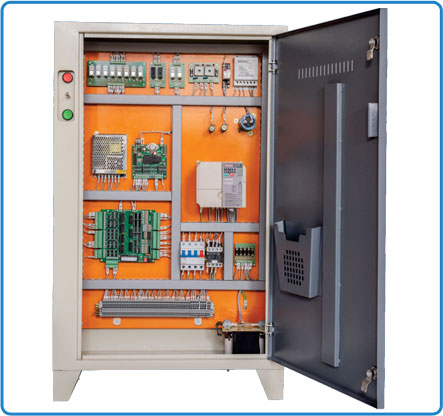

Two speed auto door controller

Features

• Suitable for all type of V3F drive.
• Available in down collective & Fully collective system.
• Supported upto 16th Floor.
• Adjustable all type of parameter on site.
• Call register LED and call push button are on single wire.
• Password protection function is available to set elevator running time.
• Adjustable Display Pattern.
• Door lock Short protection.
• Required voltage rated of Ram and Brake coil.

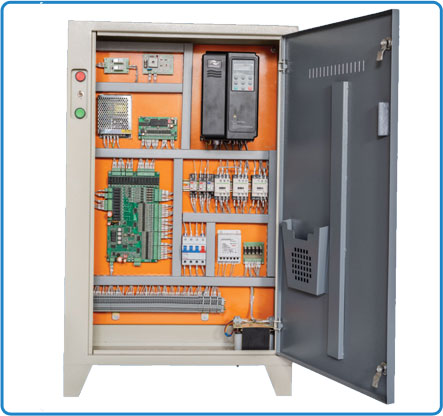

Two speed controller

Features

• Suitable for all type of V3F drives.
• Available in down collective & fully collective system.
• Dip switch for floor selection on site.
• Single, three and monostable reed option available.
• Required voltage rated of ram and brake coil.
• Supported upto 15th floor.
• Output contactor protection for drive (optional).

Single speed controller

Features

• Available in customer required rating.
• Thermal overload relay Protection against overcurrent.
• Dip switch for floor selection on site.
• Required voltage rated of ram and brake coil.
• Supported upto 15th floor.
• Single, three and monostable reed option available.

Hydraulic controller

Features

• Available in any valve voltage rating.
• Supported for releveling function.
• Thermal overload relay Protection against overcurrent.
• Inbuilt Automatic Rescue device (Optional).
• Also available for star—delta motor with adjustable changeover timing.
• Single, three and monostable reed option available.
• Required voltage rated of ram coil.
• Available for auto and manual door operation.

Automatic rescue revice (ARD)

Features

• Suitable for auto & manual door controller.
• Suitable for all type of V3f drive.
• Automatic shut down to save battery.
• Automatic battery charging cutoff to ensure battery life.
• Available upto 30HP. • Adjustable start, travel & trip timing.
• Overload and overcurrent protection.

Integrated close loop controller (Parallel)

Features

• Supported duplex and simplex elevator control system.
• Supported asynchronous (geared) and synchronous (gearless) motor.
• Rated speed upto 1.5 m/sec.
• Supported upto 16th floor.
• Direct to floor distance control.
• Single phase 220V AC rescue mode with light load search.
• Short floor function for different floor height.
• Static auto tuning facility.
• Safety function like under voltage, over voltage, earth & surge protection.
• Comprehensive trip diagnostics.

Power Rating

• 2.2 KW to 45 KW three phase 380V to 480V AC.
• 2.2 KW to 3.7 KW single phase 220V AC.

Integrated open loop controller

Features

• Rated speed upto 1.0 m/sec.
• Supported upto 12' floor.
• Single phase 220V AC rescue mode with light load search.
• Short floor function for different floor height.
• Safety function like under voltage, over voltage, earth & surge protection.
• Comprehensive trip diagnostics.

Power Rating

• 3.7 KW to 11 KW three phase 380V to 480V AC.

Integrated close loop (MRL-Home Lift) gearless controller

Features

• Machine roomless integrated control cabinet.
• Supported duplex and simplex elevator control system.
• Supported synchronous (gearless) motor.
• Rated speed upto 1.5 m/sec.
• Supported upto 16th floor.
• Direct to floor distance control.
• Comprehensive trip diagnostics.
• Single phase 220V AC rescue mode with light load search.
• Short floor function for different floor height.
• Static auto tuning facility.
• Safety function like under voltage, over voltage, earth & surge protection.

Power Rating

• 2.2 KW to 3.7 KW Single Phase 220V AC.

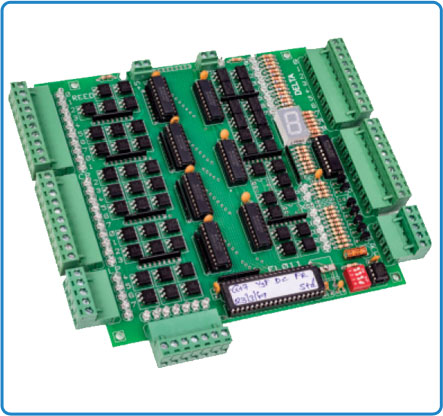

D-11
G+7 with manual door
G+5 with auto door
D-21
G+15 with manual door
G+12 with auto door
D-18
G+15 with manual & auto door
D-19
G+15 with manual & auto door
Voice Announcer
Voice Announcer
